150mm CA-22 / 200mm CA-38 / 250mm CA-60
Click pictures to enlarge

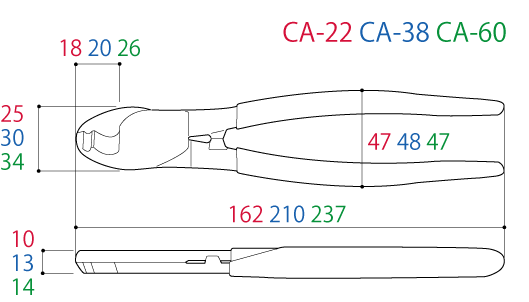

| Size[mm] | Weight [g] | EAN-code (4952269) |
|||||
| Overall length | Head width | Head thickness | Handle width | Edge length | |||
| CA-22 | 162 | 25 | 10 | 47 | 18 | 140 | 108019 |
| CA-38 | 210 | 30 | 13 | 48 | 20 | 250 | 108026 |
| CA-60 | 237 | 34 | 14 | 47 | 26 | 330 | 108033 |
| Cutting capacity (φmm) | Copper core cable | IV Cable |
| CA-22 | 9.0 | 22 |
| CA-38 | 11.0 | 38 |
| CA-60 | 13.0 | 60 |
Note: Do not use to cut harder wire or anything above it rated the capacity.
