Diagonal Cutting Pliers

130mm CN-130HGS / 160mm CN-160HGS JISSpring

Click pictures to enlarge

Coil spring loaded.
Suitable for continuous cutting works.
For copper and iron wires.
With a stripping hole.
Comfortable elastomer molded grips.
PVC dipping grip version : CN-130S/160S

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 58～64
Spring | Coil spring
Handle cover | Elastomer molded grips
Surface treatment | Anti-rust oils

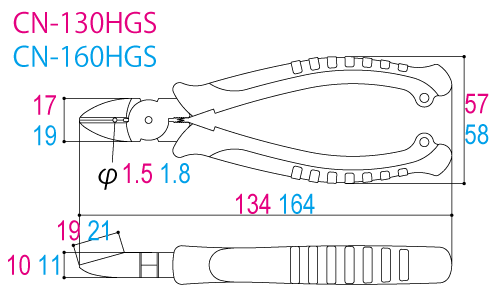

	Size[mm]						Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Cutting edge length	Hole diameter	Weight [g]	EAN-code (4952269)
CN-130HGS	134	17	10	57	19	1.5	115	110845
CN-160HGS	164	19	11	58	21	1.8	170	110852

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Stranded copper wire [mm²]
CN-130HGS	1.2	1.8	2.6	2.0
CN-160HGS	1.6	2.0	3.2	5.5

Note: Do not use to cut harder wire or anything above it rated the capacity.
