Side Cutting Pliers

125mm CP-125HG

Click pictures to enlarge

For electric works.
For cutting wire, bending metal sheets.
Oval serration part is comfortable for holding hex nuts.
PVC dipping grips version: CP-125

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 58～64
Handle cover | PVC molded grip
Surface treatment | Anti-rust oils

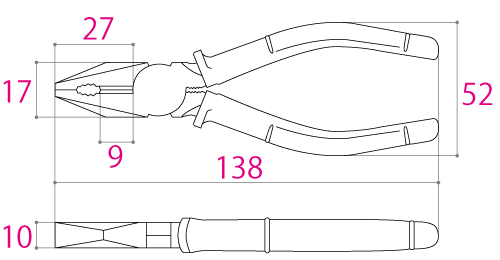

	Size[mm]						Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Cutting edge length	Weight [g]	EAN-code (4952269)
CP-125HG	138	17	10	52	27	9	115	114317

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Stranded copper wire [mm²]
CP-125HG	1.2	2.0	2.6	5.5

Note: Do not use to cut harder wire or anything above it rated the capacity.
