Side Cutting Pliers

150mm CP-150HG / 175mm CP-175HG / 200mm CP-200HG JIS

Click pictures to enlarge

For electric works.
For cutting wire, bending metal sheets and so on.
PVC dipping grip version : CP-150/175/200

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 58～64
Handle cover | PVC molded grip
Surface treatment | Anti-rust oils

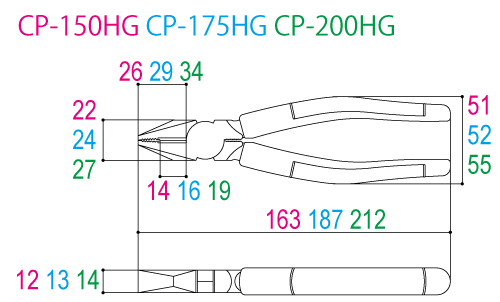

	Size[mm]						Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Nose length	Weight [g]	EAN-code (4952269)
CP-150HG	163	22	12	51	14	26	210	110869
CP-175HG	187	24	13	52	16	29	285	110876
CP-200HG	212	27	14	55	19	34	390	110883

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Stranded copper wire [mm²]	VVF cable
CP-150HG	1.6	2.6	3.2	8.0	1.6 x 3 cores
CP-175HG	2.0	2.6	3.6	8.0	1.6 x 3 cores
CP-200HG	2.6	3.2	4.0	8.0	2.0 x 3 cores

Note: Do not use to cut harder wire or anything above it rated the capacity.
