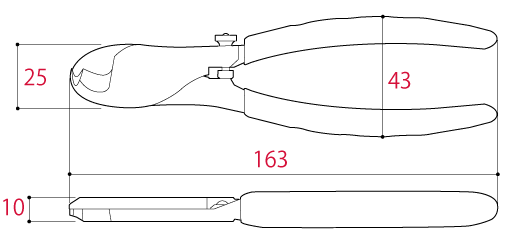

| Size[mm] | Weight [g] | EAN-code (4952269) |
||||
| Overall length | Head width | Head thickness | Handle width | |||
| CS-22 | 163 | 25 | 10 | 43 | 175 | 110203 |
| Cutting capacity (φmm) | Copper core cable | IV Cable | Stripping range(φmm) | Fulcrum side edge | Tip edge |
| 9.0 | 22 | 4～16 | 0.15～6 |
Note: Do not use to cut harder wire or anything above it rated the capacity.
