Conveyor Belt Pliers

225mm CVP-225

Click pictures to enlarge

Exclusive tool for maintenance of ladder type wire conveyor belt.
Suitable for wire belt with rod diameter of up to 5mm.
Optimized claws for opening looped wire of conveyor belt.
Newly invented edges on inside claws for gripping wire rods tightly, without slipping.

	United States	Canada
CVP-225

Features of Conveyor Belt Pliers!

For the maintenance of metal ladder conveyor belts!

No more have to cut ladder parts for their maintenance! Use this exclusively developed pliers.

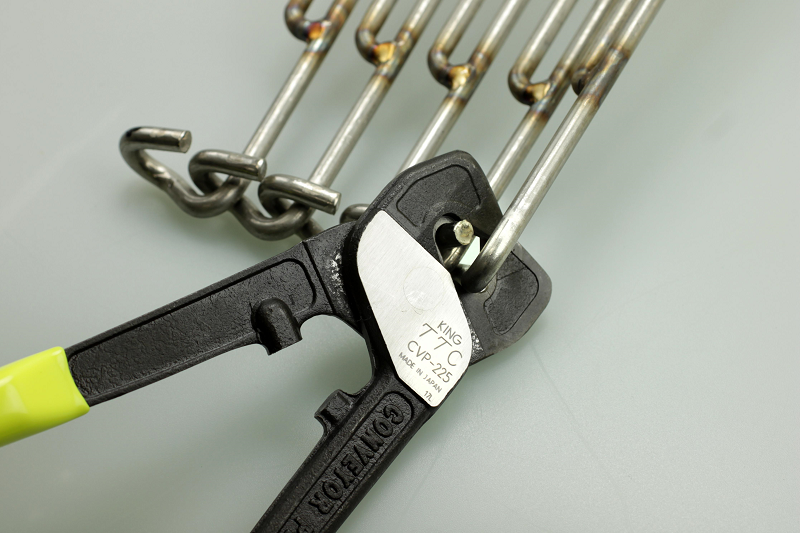

Opening : Insert the claws into the loop.

Closing : Hold entire of looped parts.

With this hand tool, power tool is no more needed for maintenance of wire conveyor. It is also recommendable for maintenance of machines and factories processing foods because metal dust won't be generated.

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment
Body hardness [HRC] | 42～50
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

	Size[mm]				Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Weight [g]	EAN-code (4952269)
CVP-225	225	36	12	40	295	114973
