Cable Tie Cutter

125mm KBN-125 / 150mm KBN-150

Click pictures to enlarge

Exclusive tool for fastening and cutting cable ties.
Just 2 steps; fastening ties with the gripping edge and cutting them with the cutting blade.
Saving time of fastening work dramatically!

Features of Cable Tie Cutter!

Specifications

Material | Japanese made ally steel
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 56～62
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

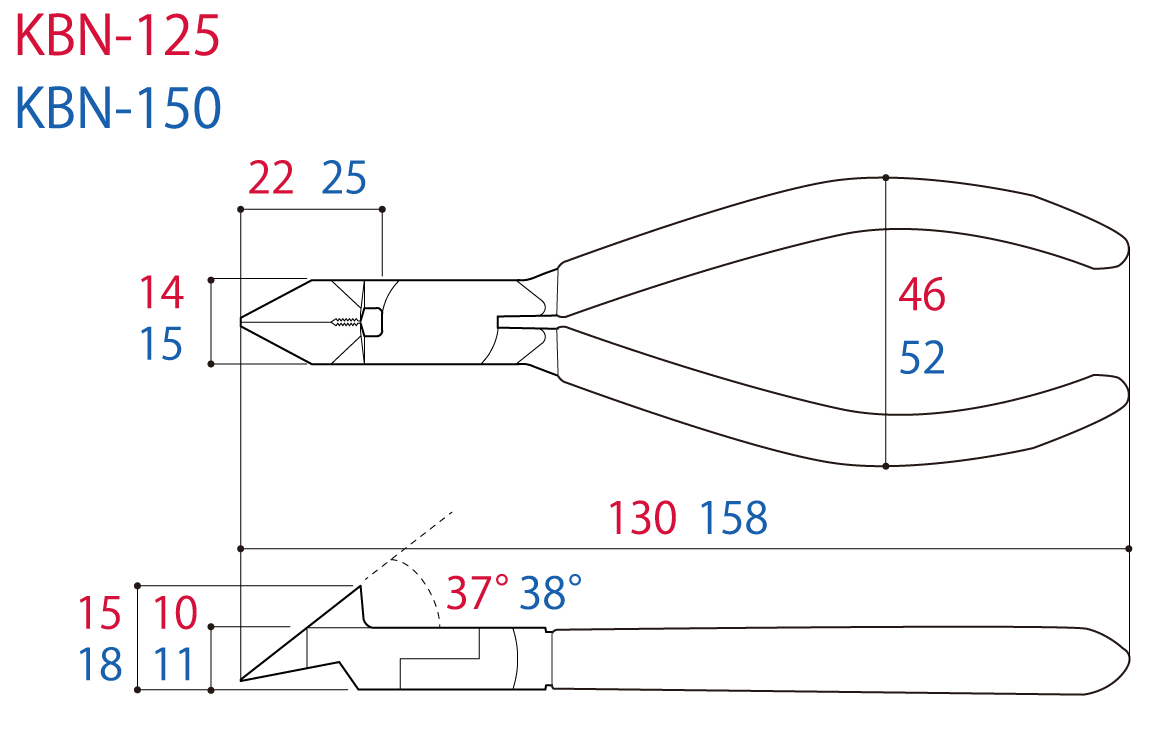

	Size[mm]							Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Body thickness	Handle width	Nose length	Head angle	Weight [g]	EAN-code (4952269)
KBN-125	130	14	15	10	46	22	37°	95	114164
KBN-150	158	15	18	11	52	25	38°	135	113976

Cutting capacity (φmm)	Cable Tie	Soft Iron	Copper	Brass	Plastic	Stranded copper wire [mm²]
KBN-125	6mm width	1.2	2.0	1.6	3.0	2.0㎟
KBN-150	8mm width	1.6	2.6	2.0	4.0	5.5㎟

Note: Do not use to cut harder wire or anything above it rated the capacity.
