Multi Purpose Long Nose Pliers

150mm KRP-150 CRIMPING

Click pictures to enlarge

Long nose pliers with multi functions.
This is not an exclusive crimping tool.

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 54～62
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

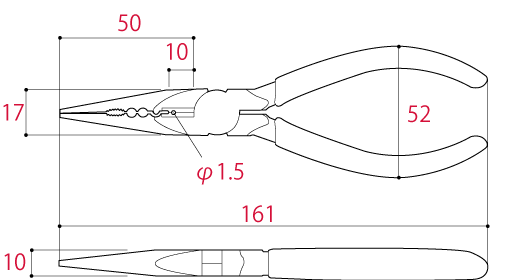

	Size[mm]							Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Edge length	Hole diameter	Weight [g]	EAN-code (4952269)
KRP-150	161	17	10	52	50	10	1.5	125	103069

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Brass	Stranded copper wire [mm²]
KRP-150	1.6	2.0	2.6	2.0	5.5㎟

Note: Do not use to cut harder wire or anything above it rated the capacity.
