Long Nose Pliers Smooth type

125mm MF-120 Spring


Click pictures to enlarge

  • For fine works and cutting wire.
  • Not serrated smooth jaw is suitable for holding targets required not to be scratched.
  • Serrated jaw version : MR-115/120
  • Smooth jaw, w/o cutting blade version : MR-115F
Specifications
  • Material | Carbon steel for machinery
  • Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
  • Body hardness [HRC] | 42~50
  • Edge hardness [HRC] | 54~62
  • Spring | Coil spring
  • Handle cover | PVC dipping
  • Surface treatment | Anti-rust oils

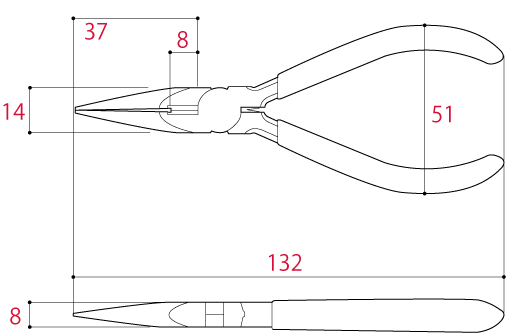

Size[mm]Weight
[g]
EAN-code
(4952269)
Overall lengthHead widthHead thicknessHandle widthNose lengthEdge length
MF-1201321485137870110654
Cutting capacity (φmm)StainlessSoft ironCopperBrassStranded copper wire [mm²]
MF-1201.21.62.02.03.5㎟

Note: Do not use to cut harder wire or anything above it rated the capacity.
