Micro Cutting Pliers

125mm MN-125 Spring


Click pictures to enlarge

  • Cutting stranded wires clearly with ease and clean face.
Specifications
  • Material | Carbon steel for machinery
  • Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
  • Body hardness [HRC] | 42~50
  • Edge hardness [HRC] | 54~62
  • Spring | Coil spring
  • Handle cover | PVC dipping
  • Surface treatment | Anti-rust oils
Size[mm]Weight
[g]
EAN-code
(4952269)

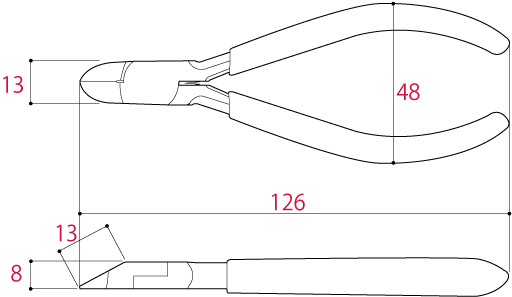

Overall lengthHead widthHead thicknessHandle widthEdge length
MN-125126138481370402124
Cutting capacity (φmm)StainlessSoft ironCopperBrassStranded copper wire [mm²]
MN-1250.91.62.01.63.5㎟

Note: Do not use to cut harder wire or anything above it rated the capacity.
