Cutting Pliers

100mm MNK-100 Spring

Click pictures to enlarge

Smallest size cutting pliers.
For various materials like plastics or iron wire.
Maximum jaw opening is adjustable with loaded stopper.
Stopper reduces surplus movement of handles and improves work efficiency.

Specifications

Material | Carbon steel for machinery
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Edge hardness [HRC] | 58～64
Spring | Coil spring
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

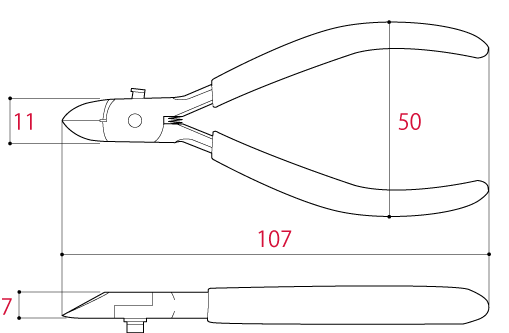

	Size[mm]						Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Head angle	Weight [g]	EAN-code (4952269)
MNK-100	107	11	7	50	12	29°	50	401301

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Brass	Stranded copper wire [mm²]
MNK-100	1.2	1.6	2.0	2.0	3.5㎟

Note: Do not use to cut harder wire or anything above it rated the capacity.
