Cutting Pliers

125mm MNK-125 Spring

Click pictures to enlarge

For assembling and maintenance of electronic devices.

Specifications

Material | Carbon steel for machinery
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 54～62
Spring | Coil spring
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

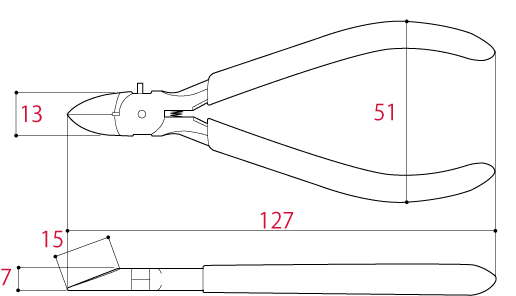

	Size[mm]					Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Weight [g]	EAN-code (4952269)
MNK-125	127	13	7	51	15	65	401318

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Brass	Stranded copper wire [mm²]
MNK-125	1.2	1.6	2.6	2.0	3.5㎟

Note: Do not use to cut harder wire or anything above it rated the capacity.
