Slant Edge Cutting Pliers

125mm NP-125 / 150mm NP-150 JIS

Click pictures to enlarge

Suitable for cutting targets at the closest point from walls.
Clean cut surface.
Stripping hole loaded on the edge.
Also for removing staples using the tip of edge.

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 54～62
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

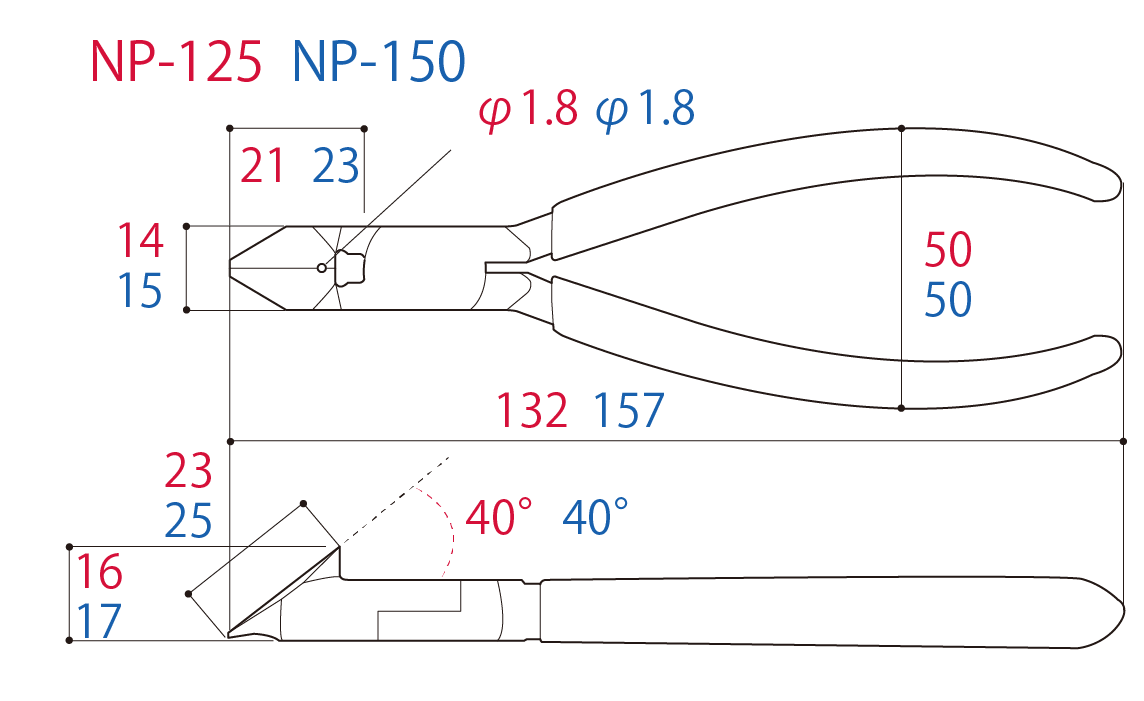

	Size[mm]								Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Edge length	Hole diameter	Head angle	Weight [g]	EAN-code (4952269)
NP-125	132	14	16	50	21	24	1.8	40°	95	104011
NP-150	157	15	17	50	23	25	1.8	40°	135	104028

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Stranded copper wire [mm²]	Brass	Plastic
NP-125	0.9	1.2	2.0	2.0	1.6	3.0
NP-150	1.2	1.6	2.6	5.5	2.0	4.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
