160mm PG-160 / 200mm PG-200 ECCENTRIC
Click pictures to enlarge

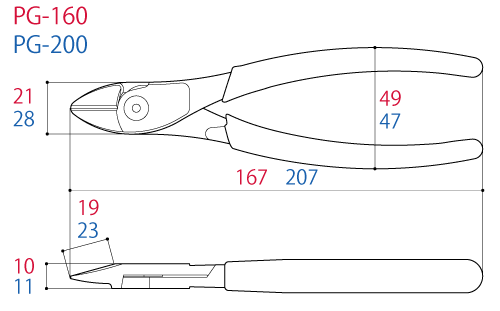

| Size[mm] | Weight [g] | EAN-code (4952269) |
|||||
| Overall length | Head width | Head thickness | Handle width | Edge length | |||
| PG-160 | 167 | 21 | 10 | 49 | 19 | 170 | 111354 |
| PG-200 | 207 | 28 | 11 | 47 | 23 | 265 | 111378 |
| Cutting capacity (φmm) | Piano wire | Stainless | Soft iron | Copper | IV wire [mm²] |
| PG-160 | 1.0 | 1.6 | 3.2 | 4.0 | 14 |
| PG-200 | 1.2 | 1.6 | 3.2 | 5.0 | 22 |
Note: Do not use to cut harder wire or anything above it rated the capacity.
