Slip Joint Pliers

150mm PL-150 JIS

Click pictures to enlarge

Two type of jaw position can be chose with slip joint.
Wide jaw position for holding large target.
Cutting function is available with narrow jaw position.

Specifications

Material | Carbon steel for machinery（S55C）
Heat Treatment | Oxide-free heat treatment
Body hardness [HRC] | 47～55
Handle cover | PVC dipping
Surface treatment | Nickel-chrome plating

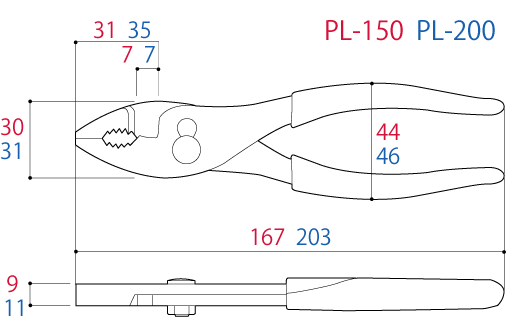

	Size[mm]						Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Edge length	Weight [g]	EAN-code (4952269)
PL-150	167	30	9	44	31	7	165	106060
PL-200	203	31	11	46	35	7	270	106077

Cutting capacity (φmm)	Soft iron	Annealed iron	Max jaw opening
PL-150	2.0	2.0	20
PL-200	2.6	2.6	25

Note: Do not use to cut harder wire or anything above it rated the capacity.
