PLA-iers (Replaceable Resin Jaw Pliers) w/ Spring

150mm PL-150SC-S / 200mm PL-200SC-S Spring

Click pictures to enlarge

2 positions slip joint pliers
Replaceable plastic pads prevent scratching on work pieces.

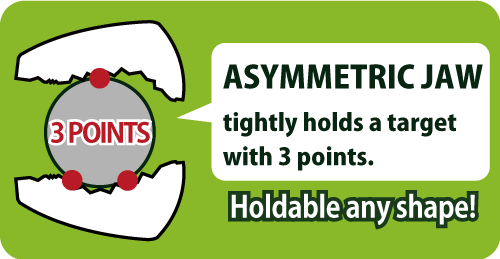

The pair of asymmetric pads hold a target tightly with 3 points.
Built in spring is loaded.
Wire cutter
No screws required to replace pads.
Made in Thailand

	United States	Canada
PL-150SC-S 150mm
SC-PL-150 (Replacement for PL-150SC-S)
PL-200SC-S 200mm
SC-PL-200 (Replacement for PL-200SC-S)

Specifications

Material(Body) | Alloy steel
Material(Pads) | POM resin
Spring | Built in spring
Handle cover | PVC dipping
Surface | Blackening treatment

	Size(mm)					Weight (g)	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Jaw length	Weight (g)	EAN-code (4952269)
PL-150SC-S	184	28	12	32	31	165	113983
PL-200SC-S	227	31	12	34	35	230	113990

	Adjustments	Holdable range - Esternal diameter(mm)	Cutting capacity - Soft iron(φmm)	Spare jaws
PL-150SC-S	2 positions	6～28	2.0	SC-PL-150
PL-200SC-S	2 positions	6～32	2.6	SC-PL-200

Note: Do not use to cut harder wire or anything above it rated the capacity.
