Plastic Cutting Pliers Flat-blade

115mm PN-115F Spring


Click pictures to enlarge

  • For cutting plastic molding gates or nylon thread.
  • Round Blade version : PN-100/PN-115
Specifications
  • Material | Carbon steel for machinery
  • Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
  • Body hardness [HRC] | 42~50
  • Edge hardness [HRC] | 54~62
  • Spring | Coil spring
  • Handle cover | PVC dipping
  • Surface treatment | Anti-rust oils
Size[mm]Weight
[g]
EAN-code
(4952269)

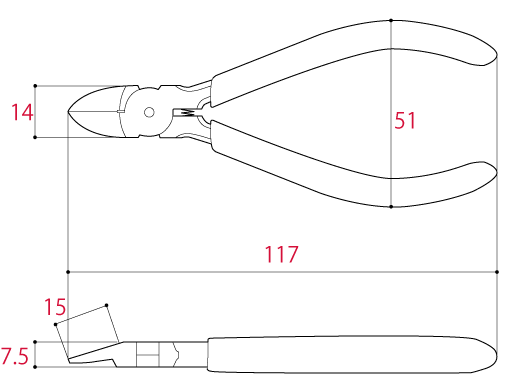

Overall lengthHead widthHead thicknessHandle widthEdge length
PN-115F117147.5511560114362
Cutting capacity (φmm)Plastic
PN-115F5.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
