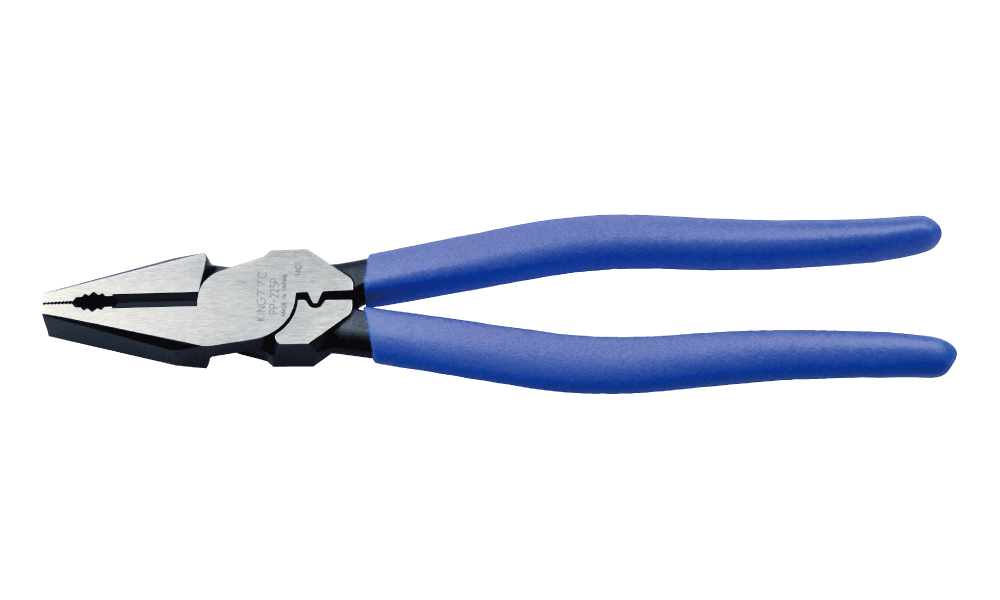

POWER Multi Purpose Side Cutting Pliers

200mm PP-200P / 225mm PP-225P ECCENTRICCRIMPING

Click pictures to enlarge

Thin and light body reduces fatigue.
Eccentric structure reduces the load required for cutting compared to conventional products.
Comfortable elastomeric double molded resin grips.
Improved handle shape.
Crimping die loaded. *This is not an exclusive crimping tool.
Elastomer molded grip version :PW-114DG/115DG

Specifications

Material | Alloy steel
Heat Treatment | Induction hardening on edge
Edge hardness [HRC] | 58～64
Handle cover | PVC dipping grips

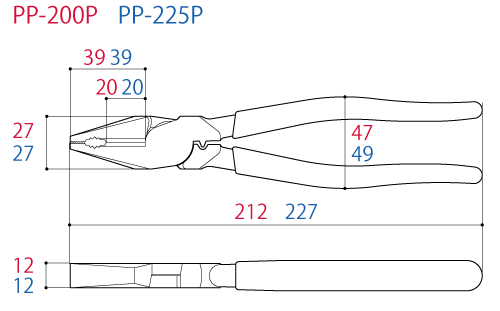

	Size[mm]						Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Edge length	Weight [g]	EAN-code (4952269)
PP-200P	210	27	12	47	39	20	310	111361
PP-225P	227	27	12	49	39	20	330	113075

Cutting capacity (φmm)	Stainless	Soft iron	Copper	IV wire [mm²]	VVF cable
PP-200P	2.0	3.2	4.0	14	2.6 x 3 cores
PP-225P	2.6	4.0	4.0	22	2.6 x 3 cores

Note: Do not use to cut harder wire or anything above it rated the capacity.
