Power "Pick and Cut" Multi Pliers

150mm PW-212DG Spring

Click pictures to enlarge

  • Rounded serration prevents damaging target surface.
  • Holding target tightly at 3 points of tip. One side of nose tip is v-shaped processed.
  • Two edges loaded. Tip side edge is comfortable for cutting wire inside a machine.
  • Wire stripping hole on the fulcrum side edge.
  • Comfortable elastomeric double molded resin grips.

Specifications
  • Material | Alloy steel
  • Heat Treatment | Induction hardening on edge
  • Edge hardness [HRC] | 56~62
  • Spring | Coil spring
  • Handle cover | Elastomeric double molded resin grips

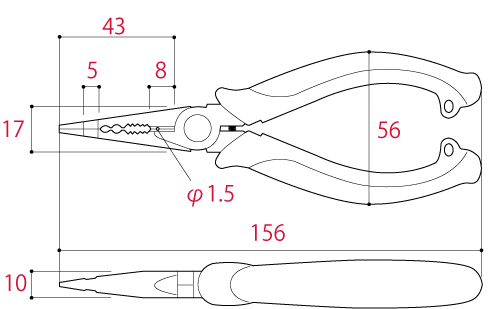

Size[mm]Weight
[g]
EAN-code
(4952269)
Overall lengthHead widthHead thicknessHandle widthNose lengthEdge lengthStripping hole
PW-212DG156171056435 and 8φ1.5120110418
Cutting capacity
(φmm)
StainlessSoft ironCopperStranded copper wire [mm²]
PW-212DGTip side blade--0.50.75
fulcrum side blade1.02.02.62.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
