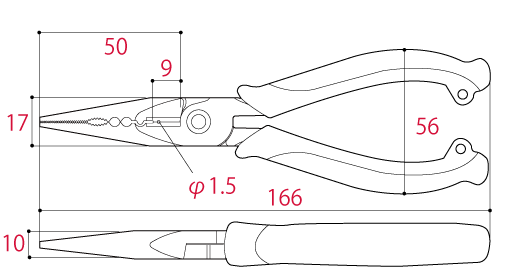

| Size[mm] | Weight [g] | EAN-code (4952269) |
|||||||
| Overall length | Head width | Head thickness | Handle width | Nose length | Edge length | Stripping hole | |||
| PW-232DG | 166 | 17 | 10 | 56 | 50 | 9 | φ1.5 | 140 | 113891 |
| Cutting capacity (φmm) | Stainless | Soft iron | Copper | Stranded copper wire [mm²] |
| PW-232DG | 1.2 | 2.0 | 3.2 | 3.5 |
Note: Do not use to cut harder wire or anything above it rated the capacity.
