Power Thin Blade Cutting Pliers

160mm PW-332DG / 200mm PW-334DG　ECCENTRIC

Click pictures to enlarge

Cutting 3 core flat cable (VVF cable) easily and cleanly.
Eccentric structure reduces the load required for cutting.
Comfortable elastomeric double molded resin grips.

Specifications

Material | Alloy steel
Heat Treatment | Induction hardening on edge
Edge hardness [HRC] | 58～64
Handle cover | Elastomeric double molded resin grips

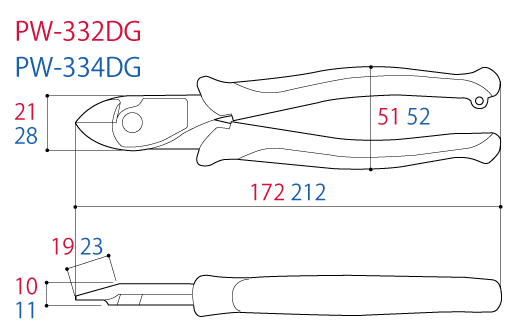

	Size[mm]					Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Weight [g]	EAN-code (4952269)
PW-332DG	172	21	10	51	19	180	113303
PW-334DG	212	28	11	52	23	290	113310

Cutting capacity (φmm)	VVF cable	Soft iron	Brass	Copper	IV wire [mm²]
PW-332DG	2.0x3cores	2.0	2.6	4.0	22
PW-334DG	2.6x3cores	2.6	3.0	4.0	22

Note: Do not use to cut harder wire or anything above it rated the capacity.
