Long Nose Pliers

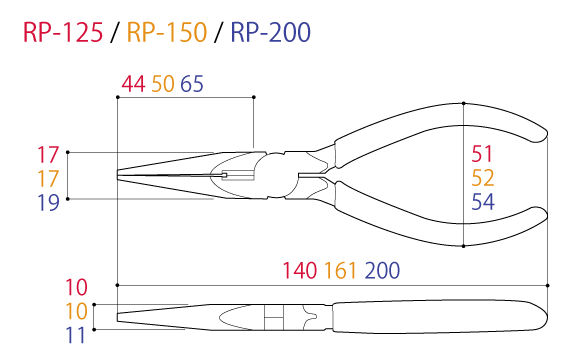

125mm RP-125 / 150mm RP-150 / 200mm RP-200 JIS(RP-150)

Click pictures to enlarge

For cutting wire and bending metal plates.
*RP-125/200 are not JIS certified because JIS standard for long nose pliers exists only 150mm size.

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 54～62
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

	Size[mm]					Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Weight [g]	EAN-code (4952269)
RP-125	140	17	10	51	44	100	103014
RP-150	161	17	10	52	50	125	103021
RP-200	200	19	11	54	65	180	103038

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Brass	Stranded copper wire [mm²]
RP-125	1.2	1.8	2.6	2.0	2.0
RP-150	1.6	2.0	2.6	2.0	5.5
RP-200	2.0	2.6	3.2	2.6	8.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
