Long Nose Pliers w/ Spring and Stripping hole

125mm RP-125SH / 150mm RP-150SH SpringJIS(RP-150SH)

Click pictures to enlarge

Coil spring and stripping hole loaded.
For cutting wire and bending metal plates.
*RP-125SH is not a JIS certificated item.

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 54～62
Spring | Coil spring
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

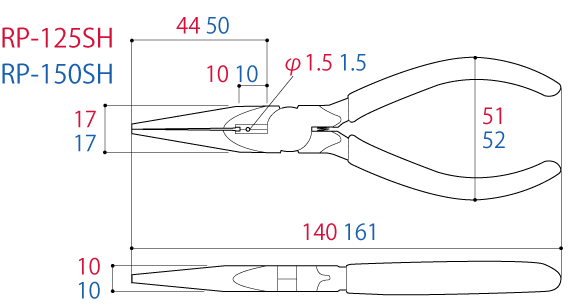

	Size[mm]						Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Stripping hole	Weight [g]	EAN-code (4952269)
RP-125SH	140	17	10	51	44	φ1.5	100	103120
RP-150SH	161	17	10	52	50	φ1.5	125	103151

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Brass	Stranded copper wire [mm²]
RP-125SH	1.2	1.8	2.6	2.0	2.0
RP-150SH	1.6	2.0	2.6	2.0	5.5

Note: Do not use to cut harder wire or anything above it rated the capacity.
