125mm SEB-125P / 175mm SEB-175P / 230mm SEB-230P/ 300mm SIB-300P Spring

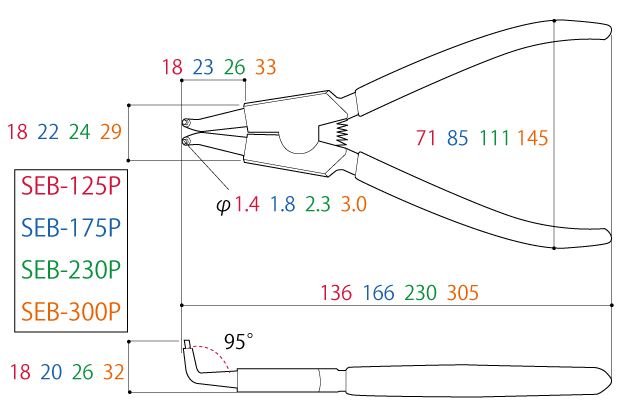

Size[mm] | Weight [g] | JAN-code (4952269) |
||||||
Overall length | Head width | Handle width | Bent part length | Nose length | Nose angle | |||
SEB-125P | 136 | 18 | 71 | 18 | 18 | 95° | 110 | 110098 |
SEB-175P | 166 | 22 | 85 | 20 | 23 | 95° | 170 | 110135 |
SEB-230P | 230 | 24 | 111 | 26 | 26 | 95° | 285 | 110173 |
SEB-300P | 305 | 29 | 145 | 32 | 33 | 95° | 535 | 113532 |
Sizes across flats : (φmm) | Usable range(mm) | |
SEB-125P | 1.4 | 12~25 |
SEB-175P | 1.8 | 19~40 |
SEB-230P | 2.3 | 32~75 |
SEB-300P | 3.0 | 75~140 |
