125mm SES-125P / 175mm SES-175P / 230mm SES-230P / 300mm SES-300P Spring

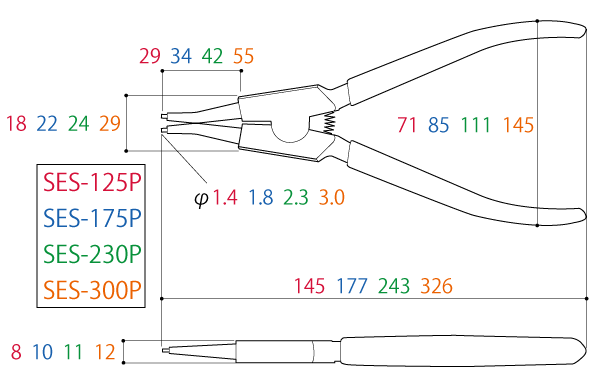

Size[mm] | Weight [g] | JAN-code (4952269) |
|||||
Overall length | Head width | Handle width | Head thickness | Nose length | |||
SES-125P | 145 | 18 | 71 | 8 | 29 | 110 | 110081 |
SES-175P | 177 | 22 | 85 | 10 | 34 | 170 | 110128 |
SES-230P | 243 | 24 | 111 | 11 | 42 | 285 | 110166 |
SES-300P | 326 | 29 | 145 | 12 | 55 | 535 | 113525 |
Sizes across flats : (φmm) | Usable range(mm) | |
SES-125P | 1.4 | 12~25 |
SES-175P | 1.8 | 19~40 |
SES-230P | 2.3 | 32~75 |
SES-300P | 3.0 | 75~140 |
