Snap Ring Pliers Bent-Jaw for Internal Rings

125mm SIB-125P / 175mm SIB-175P / 230mm SIB-230P / 300mm SIB-300P Spring

Click pictures to enlarge

  • New 300mm size is now avairable!
  • For internal snap rings (circlip rings).
  • High durability and wear resistance are realized by using piano wire for bits.
  • Tapered bit-basement and non-slip processed bit-surface prevent dropping rings out.
  • Holding stability improve safety and efficiency of works.
Features of Snap Ring Pliers!
Specifications
  • Material(Body) | Alloy steel
  • Material (Bit) | Piano wire
  • Heat Treatment | Oxide-free heat treatment
  • Spring | Coil spring
  • Handle cover | PVC dipping

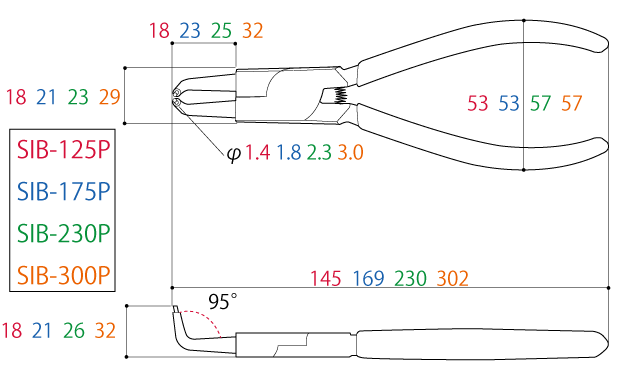

Size[mm]Weight
[g]		JAN-code
(4952269)
Overall lengthHead widthHandle widthBent part lengthNose lengthNose angle
SIB-125P1451853181895°105110111
SIB-175P1692153212395°150110159
SIB-230P2302357262595°255110197
SIB-300P3022957323295°475113556
Bit diameter : (φmm)Usable range（mm)
SIB-125P1.412～25
SIB-175P1.819～60
SIB-230P2.332～80
SIB-300P3.080～165
