Snap Ring Pliers Straight-Jaw for Internal Rings

125mm SIS-125P / 175mm SIS-175P / 230mm SIS-230P / 300mm SIS-300P Spring

Click pictures to enlarge

  • New 300mm size is now avairable!
  • For internal snap rings (circlip rings).
  • High durability and wear resistance are realized by using piano wire for bits.
  • Tapered bit-basement and non-slip processed bit-surface prevent dropping rings out.
  • Holding stability improve safety and efficiency of works.

Features of Snap Ring Pliers!
Specifications
  • Material(Body) | Alloy steel
  • Material (Bit) | Piano wire
  • Heat Treatment | Oxide-free heat treatment
  • Spring | Coil spring
  • Handle cover | PVC dipping

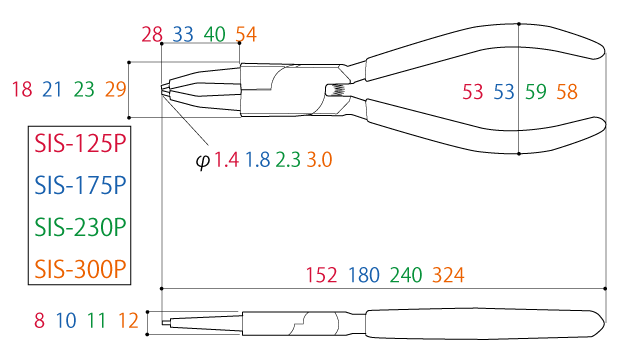

Size[mm]Weight
[g]
JAN-code
(4952269)
Overall lengthHead widthHandle widthHead thicknessNose length
SIS-125P1521853828105110104
SIS-175P18021531033150110142
SIS-230P24023591140255110180
SIS-300P30529581254475113549
Bit diameter : (φmm)Usable range(mm)
SIS-125P1.412~25
SIS-175P1.819~60
SIS-230P2.332~80
SIS-300P3.080~165
