STAINLESS Multi Bent Nose Pliers

150mm SMB-150DG CRIMPING

Click pictures to enlarge

Made of high quality stainless. Hardly get rusty.
For works around wet places and outdoor activities.
Stripping hole on edge.
Crimping die loaded. *This is not an exclusive crimping tool.
Comfortable elastomeric double molded resin grips.

Specifications

Material | Stainless
Handle cover | Elastomeric double molded resin grips

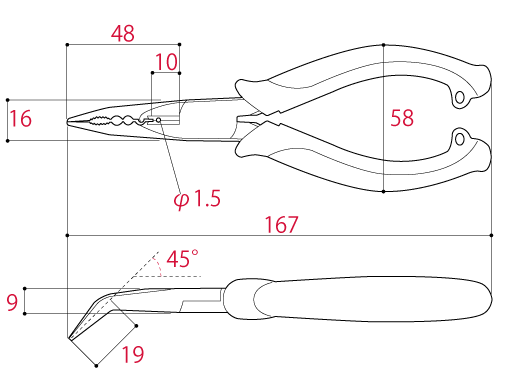

	Size[mm]									Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Edge length	Stripping hole	Bent part length	Bent angle	Weight [g]	EAN-code (4952269)
SMB-150DG	167	16	9	58	48	10	φ1.5	19	45°	130	105179

Cutting capacity (φmm)	Soft iron	Copper	Stranded copper wire [mm²]
SMB-150DG	1.0	1.2	1.25

Note: Do not use to cut harder wire or anything above it rated the capacity.
