Slim Plastic Cutter Round-blade

145mm SNP-145R / 165mm SNP-165R Spring

Click pictures to enlarge

Slim head reaches target inside narrow space.
Round blade is suitable for cutting targets on the plane surface.
Long-life torsion spring loaded.

Specifications

Material | Alloy steel
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Edge hardness [HRC] | 58～64
Spring | Torsion spring
Handle cover | PVC dipping

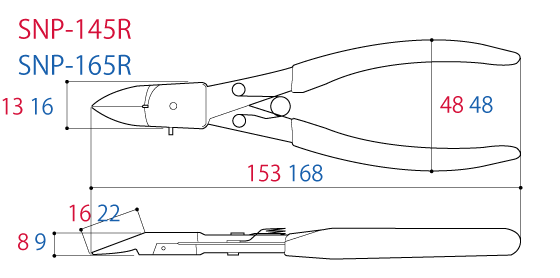

	Size[mm]					Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Weight [g]	EAN-code (4952269)
SNP-145R	153	13	8	48	16	100	107043
SNP-165R	168	16	9	48	22	130	107050

Cutting capacity (φmm)	Plastic
SNP-145R	4.0
SNP-165R	5.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
