Shearing Pliers

200mm SP-200

Click pictures to enlarge

For bending and cutting both of wire and metal sheets.
Jaw side edge for metal sheets and cables.
Handle side edge for wire.

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment
Body hardness [HRC] | 44～52
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

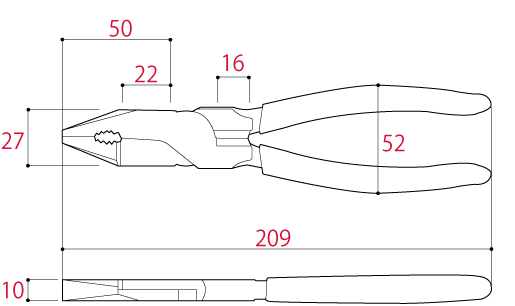

	Size[mm]							Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Jaw side edge length	Handle side edge length	Weight [g]	EAN-code (4952269)
SP-200	209	27	10	52	50	22	16	285	106121

Cutting capacity (φmm)	VVF cable	Iron sheet (thickness)	Copper sheet (thickness)	Cutting capacity (φmm)	Soft iron	Copper
Jaw side edge	2.0×2cores	0.6	1.0	Handle side edge	2.0	2.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
