TM-01 Diagonal Cutting Pliers：：：Tsunoda Co., Ltd.：：：

Diagonal Cutting Pliers

120mm TM-01 SpringBOX JOINT

Click pictures to enlarge

For cutting various materials like plastics, copper wire or nylon cord. *Do not use for stainless wire.

	United States	Canada
TM-01

Features of Trinity series products

Box joint

Long-life stability, none-backlash.

Leaf springs

Long-life and high durability. Adjustable resilience.

Comfortable elastomeric double molded resin grips

Using eco-friendly elastomer resin which does not emit dioxin when it is burned. Original designed grip realized ideal weight balance and work efficiency improvement.

Specifications

Material | Alloy steel
Heat Treatment | Induction hardening on edge
Hardness | 54～62
Spring | Leaf springs
Handle cover | Elastomeric double molded resin grips

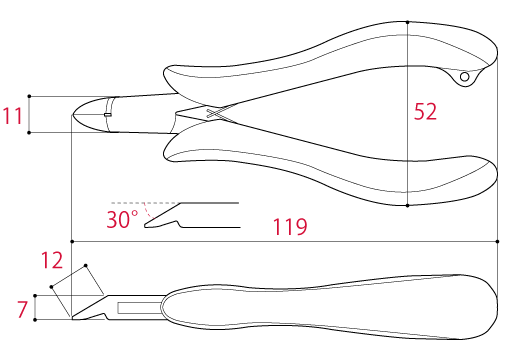

	Size[mm]						Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Head angle	Weight [g]	EAN-code (4952269)
TM-01	119	11	7	52	12	30°	60	110227

Cutting capacity (φmm)	Soft iron	Copper	Stranded copper wire [mm²]	Plastic
TM-01	0.5	1.0	1.25	2.5

Note: Do not use to cut harder wire or anything above it rated the capacity.
