TM-06 Needle Nose Pliers：：：Tsunoda Co., Ltd.：：：

Needle Nose Pliers

150mm TM-06 SpringBOX JOINT

Click pictures to enlarge

Smooth gripping surface type.
For detailed works without damaging target surface.

	United States	Canada
TM-06

Features of Trinity series products

Box joint

Long-life stability, none-backlash.

Leaf springs

Long-life and high durability. Adjustable resilience.

Comfortable elastomeric double molded resin grips

Using eco-friendly elastomer resin which does not emit dioxin when it is burned. Original designed grip realized ideal weight balance and work efficiency improvement.

Specifications

Material | Alloy steel
Heat Treatment | Induction hardening on edge
Hardness | 54～62
Spring | Leaf springs
Handle cover | Elastomeric double molded resin grips

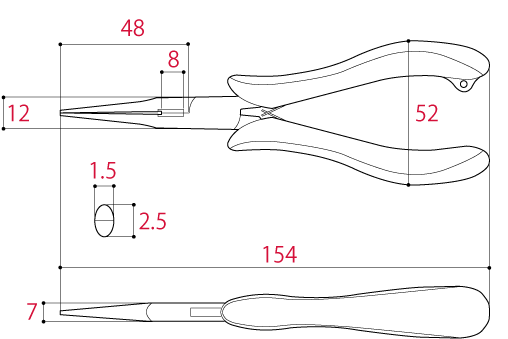

	Size[mm]							Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Edge length	Tip size	Weight [g]	EAN-code (4952269)
TM-06	154	12	7	52	48	8	1.5x2.5	75	110272

Cutting capacity (φmm)	Soft iron	Copper
TM-06	0.8	1.2

Note: Do not use to cut harder wire or anything above it rated the capacity.
