Angled Tip Cutter

120mm TM-10 SpringBOX JOINT

Click pictures to enlarge

Edge on the tip of slender head is suitable for fine works.
For cutting the smallest target like etching parts.
45° angled head is ideal for cutting protruding lead wires on printed circuit board.

	United States	Canada
TM-10

Features of Trinity series products

Box joint

Long-life stability, none-backlash.

Leaf springs

Long-life and high durability. Adjustable resilience.

Comfortable elastomeric double molded resin grips

Using eco-friendly elastomer resin which does not emit dioxin when it is burned. Original designed grip realized ideal weight balance and work efficiency improvement.

Specifications

Material | Alloy steel
Heat Treatment | Induction hardening on edge
Hardness | 54～62
Spring | Leaf springs
Handle cover | Elastomeric double molded resin grips

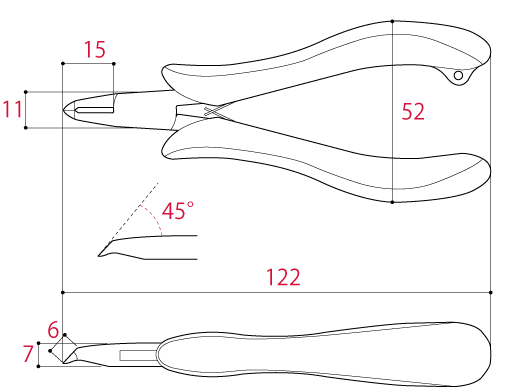

	Size[mm]							Weight [g]	EAN-code (4952269)	Order
	Overall length	Head width	Head thickness	Handle width	Nose length	Edge length	Head angle	Weight [g]	EAN-code (4952269)	Order
TM-10	122	11	7	52	15	6	45°	65	110319	Amazon.com

Cutting capacity (φmm)	Copper	Stranded copper wire [mm²]	Plastic
TM-10	1.0	1.25	1.5

Note: Do not use to cut harder wire or anything above it rated the capacity.
