Water Pump PLA-iers (Replaceable Resin Jaw Pliers) w/ Spring

200mm WP-200SC-Snew!Spring / 250mm WP-250SC-S Spring

Click pictures to enlarge

5 positions(200mm) / 8 positions(250mm) water pump pliers
Replaceable plastic pads prevent scratching on work pieces.

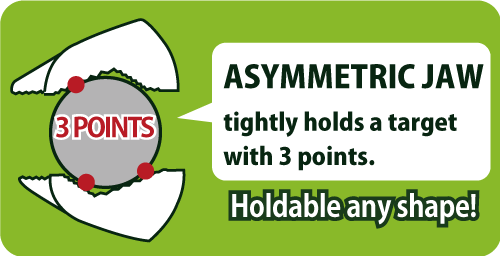

The pair of asymmetric pads hold targets tightly with 3 points.
Wire cutter

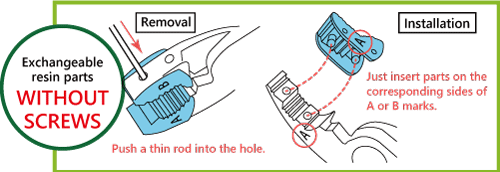

No screws required to replace pads.
Made in Thailand

Specifications

Material(Body) | Alloy steel
Material(Pads) | POM resin

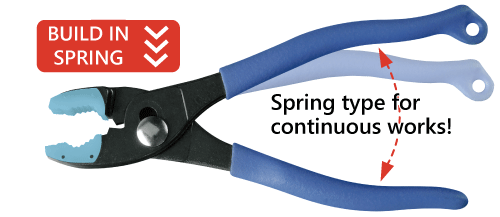

Spring | Built in spring
Handle cover | PVC dipping
Surface | Blackening treatment

	Size(mm)				Weight (g)	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Weight (g)	EAN-code (4952269)
WP-200SC-S						114874
WP-250SC-S	250	53	12	46	305	114010

	Adjustments	Holdable range - Esternal diameter(mm)	Cutting capacity - Soft iron(φmm)	Spare jaws
WP-200SC-S	5 positions	7～50	2.0	SC-WP-250
WP-250SC-S	8 positions	7～50	2.6	SC-WP-250

Note: Do not use to cut harder wire or anything above it rated the capacity.
