Diagonal Cutting Pliers

175mm CN-175N

Click pictures to enlarge

For copper and iron wires.
w/o Stripping hole version.
Diagonal Cutter 4 types & 3 sizes
[Normal] CN-125N,CN-150N,CN-175N
[w/ Stripper] CN-125,CN-150
[w/ Spring] CN-125NS,CN-150NS
[w/ Stripper & Stripper] CN-125S,CN-150S

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 58～64
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

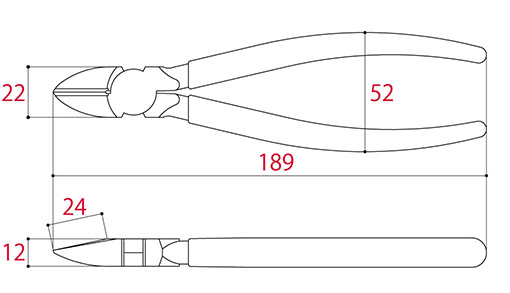

	Size[mm]					Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Weight [g]	EAN-code (4952269)
CN-175N	189	22	12	52	24	230	102048

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Stranded copper wire [mm²]
CN-175N	2.0	2.6	3.6	5.5

Note: Do not use to cut harder wire or anything above it rated the capacity.
