Diagonal Cutting Pliers (w/ Spring)

130mm CN-130NS / 160mm CN-160NS JISSpringnew!

Click pictures to enlarge

Coil spring loaded.
Suitable for continuous cutting works.
For copper and iron wires.
[Normal] CN-130N,CN-160N,CN-175N
[w/ Stripper] CN-130,CN-160
[w/ Spring] CN-130NS,CN-160NS
[w/ Stripper & Stripper] CN-130S,CN-160S

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 58～64
Spring | Coil spring
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

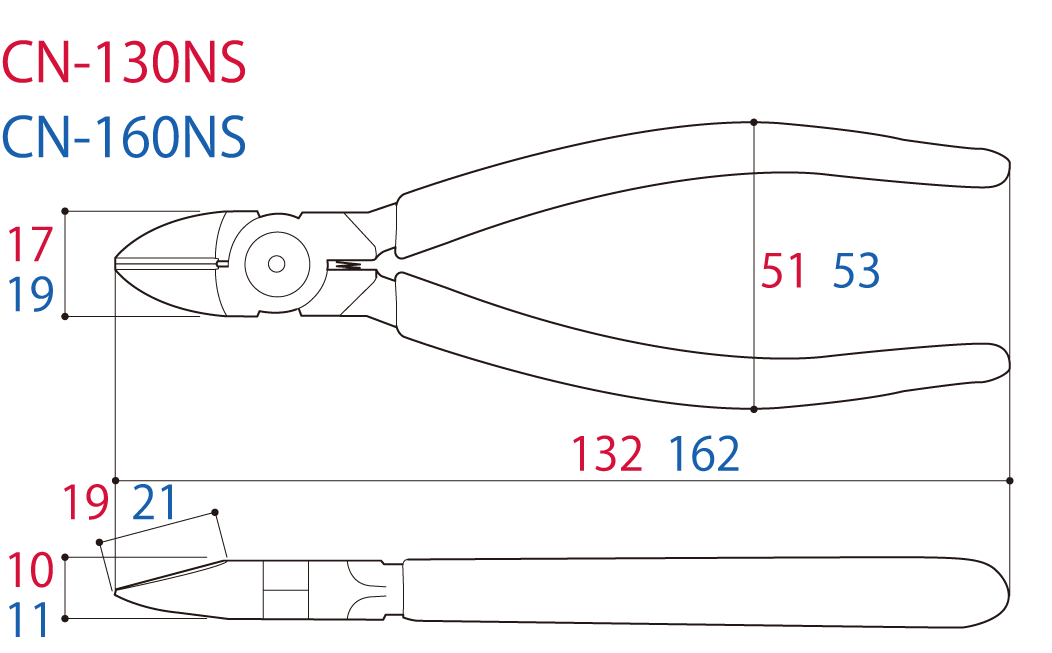

	Size[mm]					Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Cutting edge length	Weight [g]	EAN-code (4952269)
CN-130NS	132	17	10	51	19	105	114188
CN-160NS	162	19	11	53	21	160	114195

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Stranded copper wire [mm²]
CN-130NS	1.2	1.8	2.6	2.0
CN-160NS	1.6	2.0	3.2	5.5

Note: Do not use to cut harder wire or anything above it rated the capacity.
