Ultra Thin Hold Pliers Bent-type

200mm PLC-200GUB new!

Click pictures to enlarge

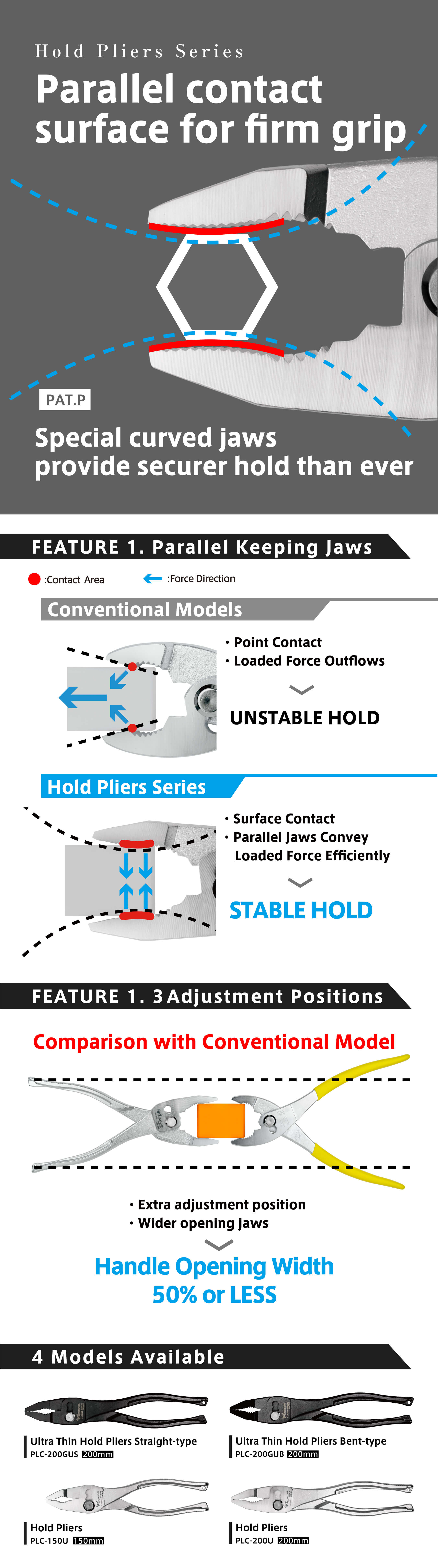

Special curved jaws keeping parallel contact surface in wide opening range
Ultra thin head of 2mm thickness for reaching narrow area.
Extra adjustment position for 50% less handle opening width.

「Ultra Thin Hold Pliers Bent-type] with bent head also available

Click below link

Specifications

Material | Carbon steel for machinery
Heat Treatment | Oxide-free heat treatment
Body hardness [HRC] | 49～53
Surface treatment | cation electrodeposition coating

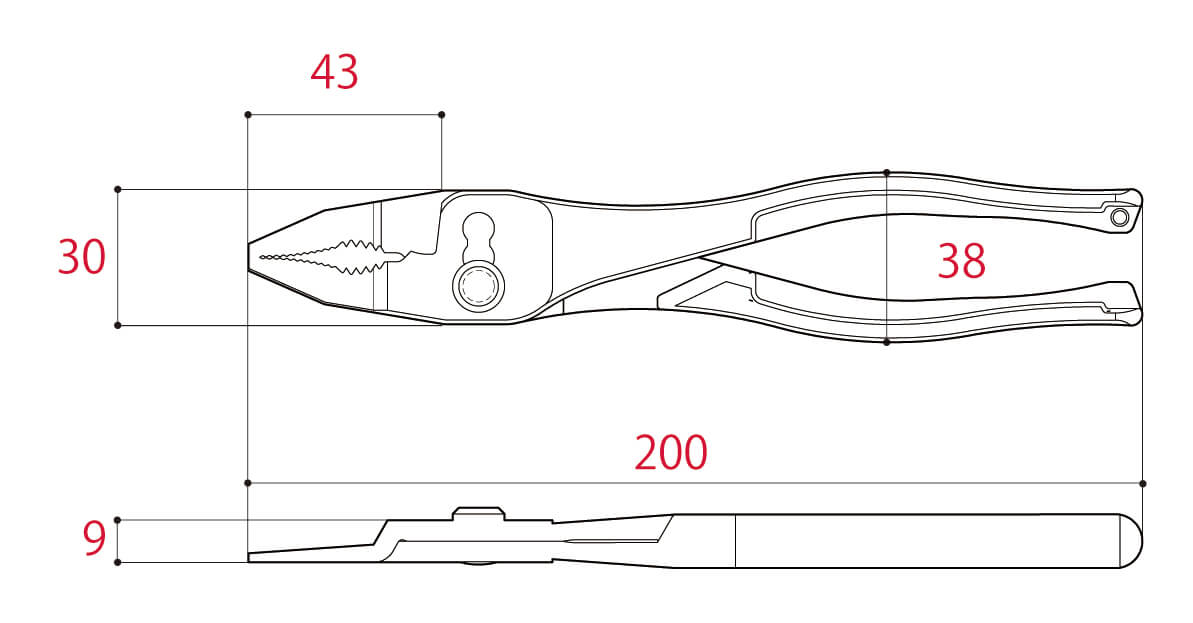

	Size[mm]						Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Nose angle	Weight [g]	EAN-code (4952269)
PLC-200GUB	200	30	9	38	42	20°	231	106206

Cutting capacity (φmm)	Soft iron	Annealed iron	Pipe External Diameter (mm)
PLC-200GUB	2.6	2.6	~32

Note: Do not use to cut harder wire or anything above it rated the capacity.
