Crimping Tool　For Non-Insulated Terminals　Parallel type

TP-8P Capacity IEC/DIN:1.5/2.5/6/10㎟　AWG:16/14/10/8　JIS:1.25/2/5.5/8㎟　JISParallel type

Click pictures to enlarge

All dice are in parallel.
Crimping different size terminals without re-holding handles.

Learn more about features of TSUNODA's crimping tools!

Crimping Tool Usable Terminals

Terminal（㎟）	0.3	0.5	1.25	2.0	3.5	5.5	8.0	14.0	22.0	38.0	60.0
TP-2 (JIS)			〇	〇
TP-3		〇	〇	〇	〇
TP-5 (JIS)			〇	〇		〇
TP-5S	〇		〇	〇	〇
TP-5M			〇	〇	〇	〇
TP-8 (JIS)			〇	〇		〇	〇
TP-8P (JIS)			〇	〇		〇	〇
TP-14 (JIS)			〇	〇		〇	〇	〇
TP-22 (JIS)						〇	〇	〇	〇
TP-38 (JIS)							〇	〇	〇	〇
TP-60 (JIS)								〇	〇	〇	〇
TP-R (JIS)	E-L・E-M・E-S
TP-RS (JIS)	E-M・E-S

Specifications

Material | Alloy steel
Head hardness [HRC] | 42～48
Handle part hardness [HRC] | 43～47
Handle cover | Elastomeric molded resin grips

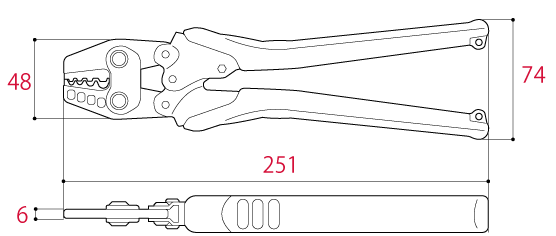

	Size[mm]				Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Weight [g]	EAN-code (4952269)
TP-8P	251	48	6	74	420	113358

Terminal Size
JIS standard ㎟	IEC・DIN standard ㎟	American Wire Gauge	Crimped Mark
1.25	1.5	16	1
2	2.5	14	2
5.5	6	10	5
8	10	8	8
